Catalogs

Browse datasheets and detailed specifications for each product.

CAM0510R

MINICAM 5MP

5MP mono camera — 2592 × 1944 resolution at 30 fps full frame rate
Rolling shutter sensor optimized for stable aerial and mobile platforms
USB 2.0 High-Speed plug-and-play, compatible with Linux / Windows / macOS

Input Power

5 V / 300 mA

Resolution

5 MP · 2592 × 1944

Frame Rate

30 fps

Output Format

MJPEG

View Datasheet ⬇ Download PDF

CAM0412R

MINICAM 4MP2MIC

4MP stereo camera with dual integrated microphones (stereo audio)
Compact rolling shutter sensor — 2560 × 1440 @ 30 fps
Wide-band audio capture: 7 Hz – 24 kHz, 48 kHz / 16-bit

Input Power

5 V / 250 mA

Resolution

4 MP · 2560 × 1440

Frame Rate

30 fps

Output Format

MJPEG

View Datasheet ⬇ Download PDF

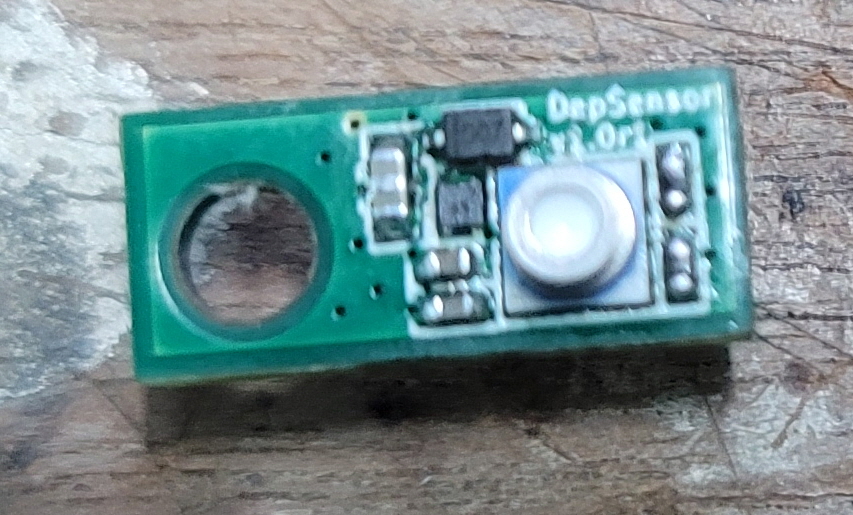

DEPTH / PRESSURE SENSOR

Depth / Pressure Sensor

High-resolution water depth measurement up to 300 m (30 bar absolute pressure)
Pressure resolution 0.2 mbar — equivalent to ~2 mm water depth
Pressure accuracy ±2 mbar (0 °C ~ +40 °C); ±4 mbar (−20 °C ~ +85 °C)

Input Power

5 V

Sensor IC

MS5837

Pressure Range

0 ~ 2 bar or 0 ~ 30 bar (absolute) *

Depth Range (fresh water)

0 ~ ~290 m

View Datasheet

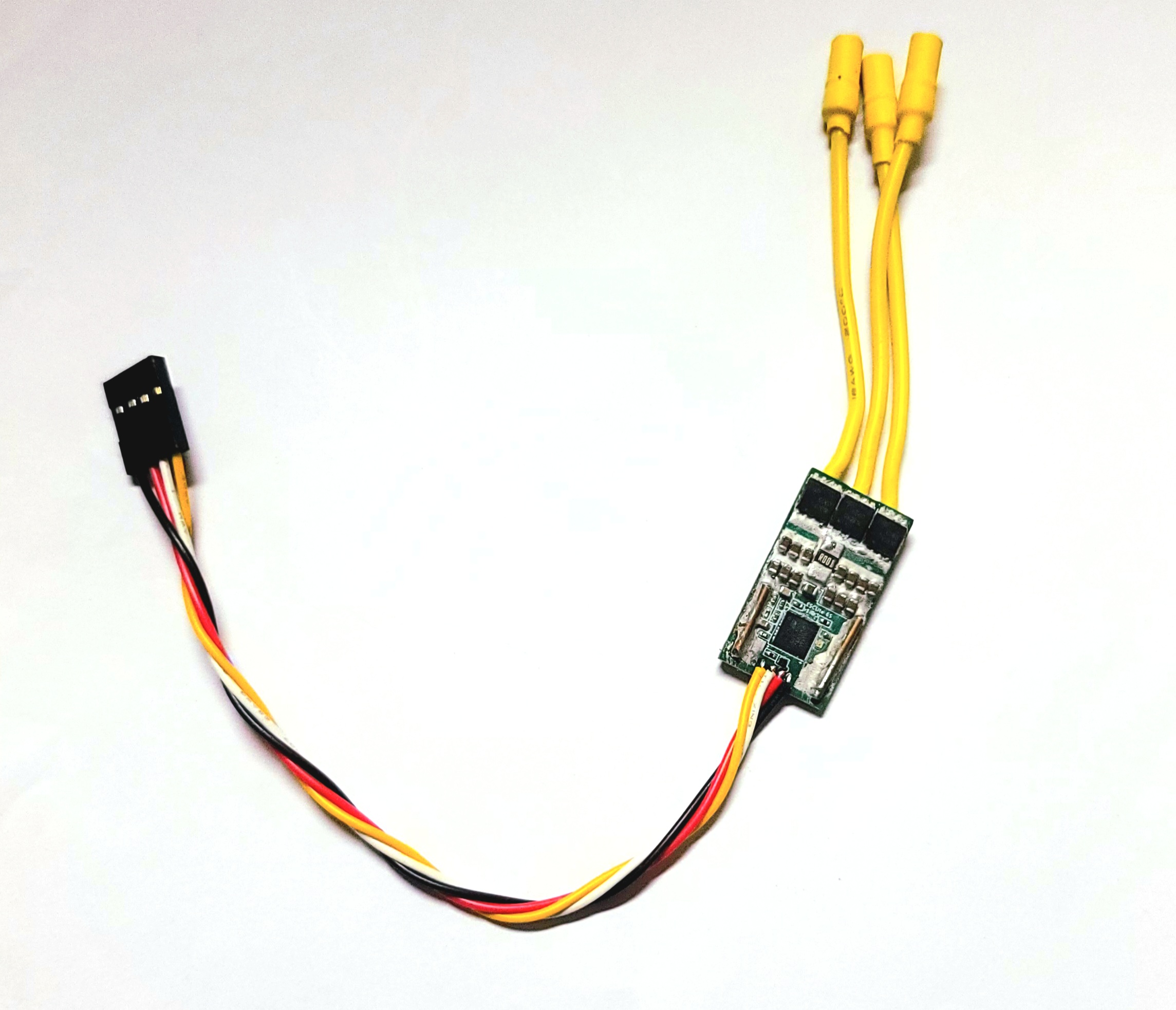

ESC10645

ESCLite 6S

AM32 open-source firmware — field-upgradeable via signal wire
45 A cont. / 50 A peak (2S–5S) · 30 A cont. / 35 A peak (6S) · 2S–6S LiPo input
Supports PWM, DSHOT300, DSHOT600 signal protocols

Input Voltage

2S – 6S LiPo (7.4 – 25.2 V)

Cont. Current

45 A (2S–5S) · 30 A (6S)

Peak Current

50 A (2S–5S) · 35 A (6S) · ≤ 10 s

BEC Output

5 V / 700 mA

View Datasheet

HUB0430 · 4-PORT USB3.0 HUB

4-Port USB 3.0 Hub

4-port USB 3.0 hub using JST GH locking connectors — mechanically retained, vibration-immune contacts
Fully USB 3.0 protocol-compliant; plug-and-play, no external driver required
Designed for companion computers on drones and mobile robots where standard USB connectors fail under vibration

USB Standard

USB 3.0 SuperSpeed

Downstream Ports

4 × SM08B-GHS-TBT

Upstream Port (Data)

1 × SM08B-GHS-TBT

Upstream Port (Power/CC)

1 × SM04B-GHS-TBT

View Datasheet

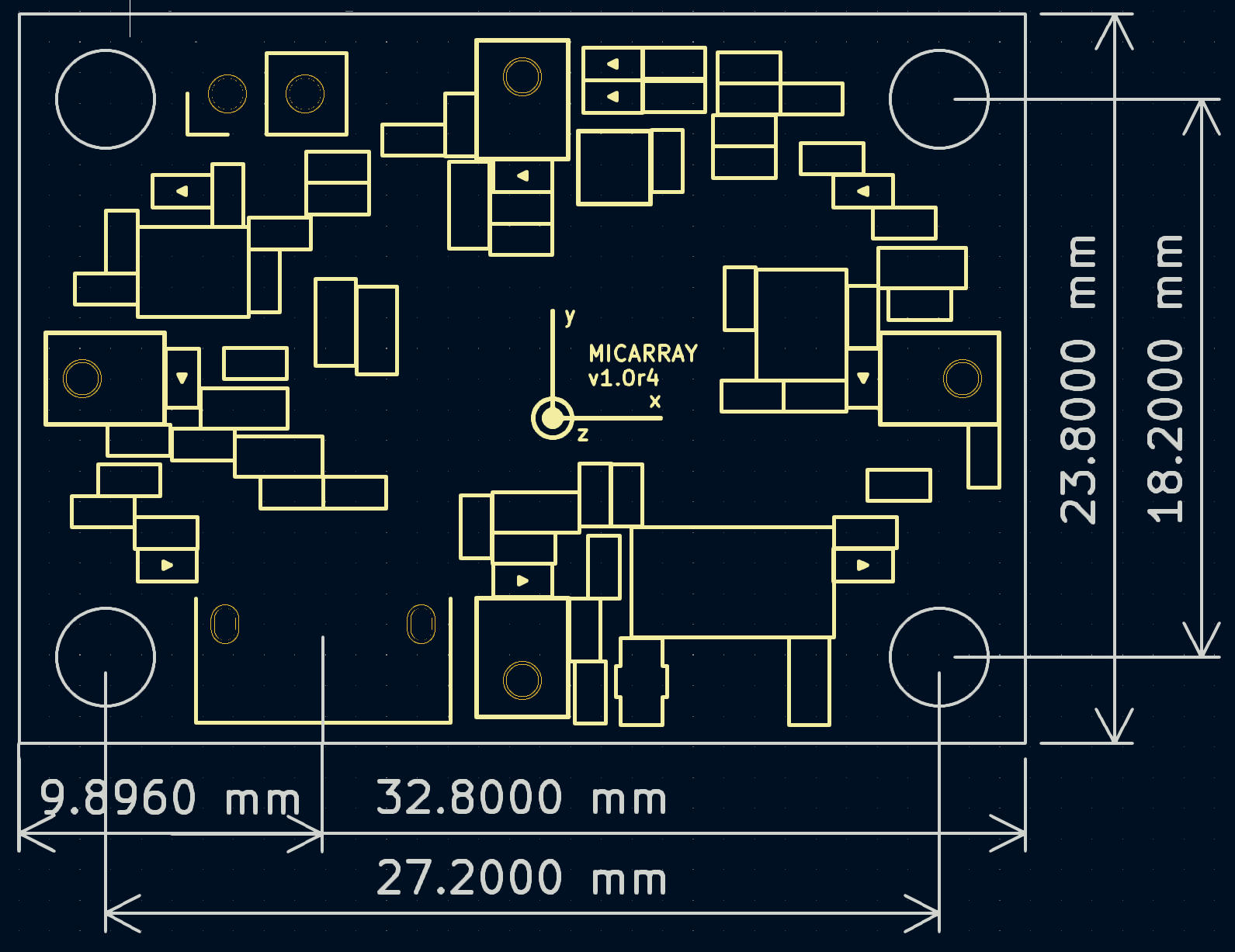

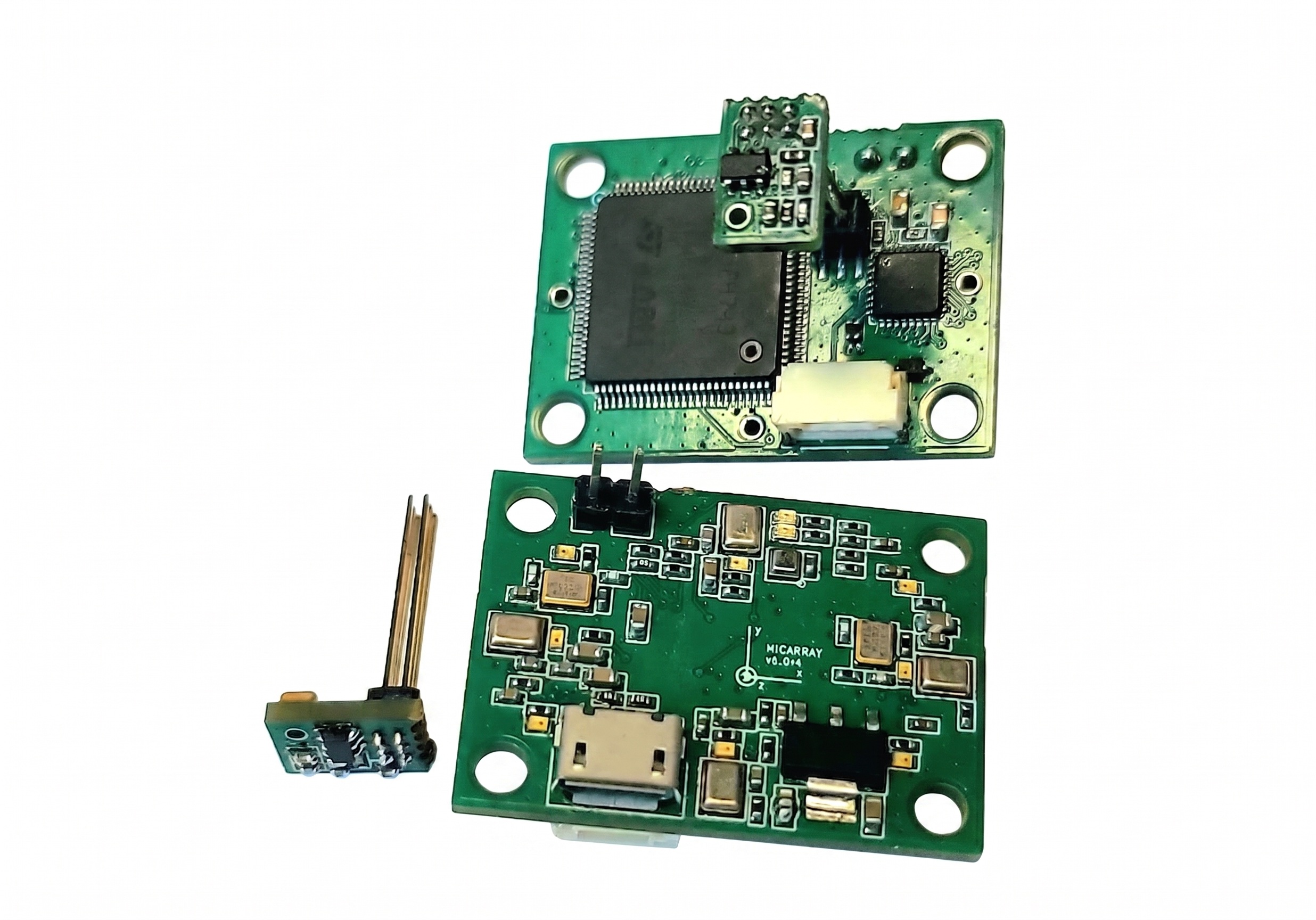

MIC0528 · 5CH MICARRAY

5-Channel MEMS Microphone Array with SSL

5-channel MEMS microphone array with integrated SSL (Sound Source Localization) — 4 fixed peripheral microphones + 1 optional floating microphone (5th mic)
Wide bandwidth support — 5-mic: SSL mode up to 96,000 Hz *, Highspeed mode up to 384,000 Hz (infrasound & ultrasound capable); 4-mic: SSL mode only, up to 96,000 Hz
8-LED ring instantly indicates detected sound direction — all 8 LEDs are directional, with 1 yellow LED marking the 0° reference; with 5-mic, LED brightness encodes signed elevation with upper/lower hemisphere; with 4-mic, operation is limited to a hemispherical region and LED brightness encodes |elevation| only

Input Power

5 V / 230 mA (typ.) / 300 mA (max)

Channels

1ch/2ch/5.1ch (SSL) · 1ch (Highspeed, 5-mic only)

Sample Rate

24,000 – 384,000 Hz (5-mic) · 24,000 – 96,000 Hz (4-mic)

Bit Depth

16-bit

View Datasheet

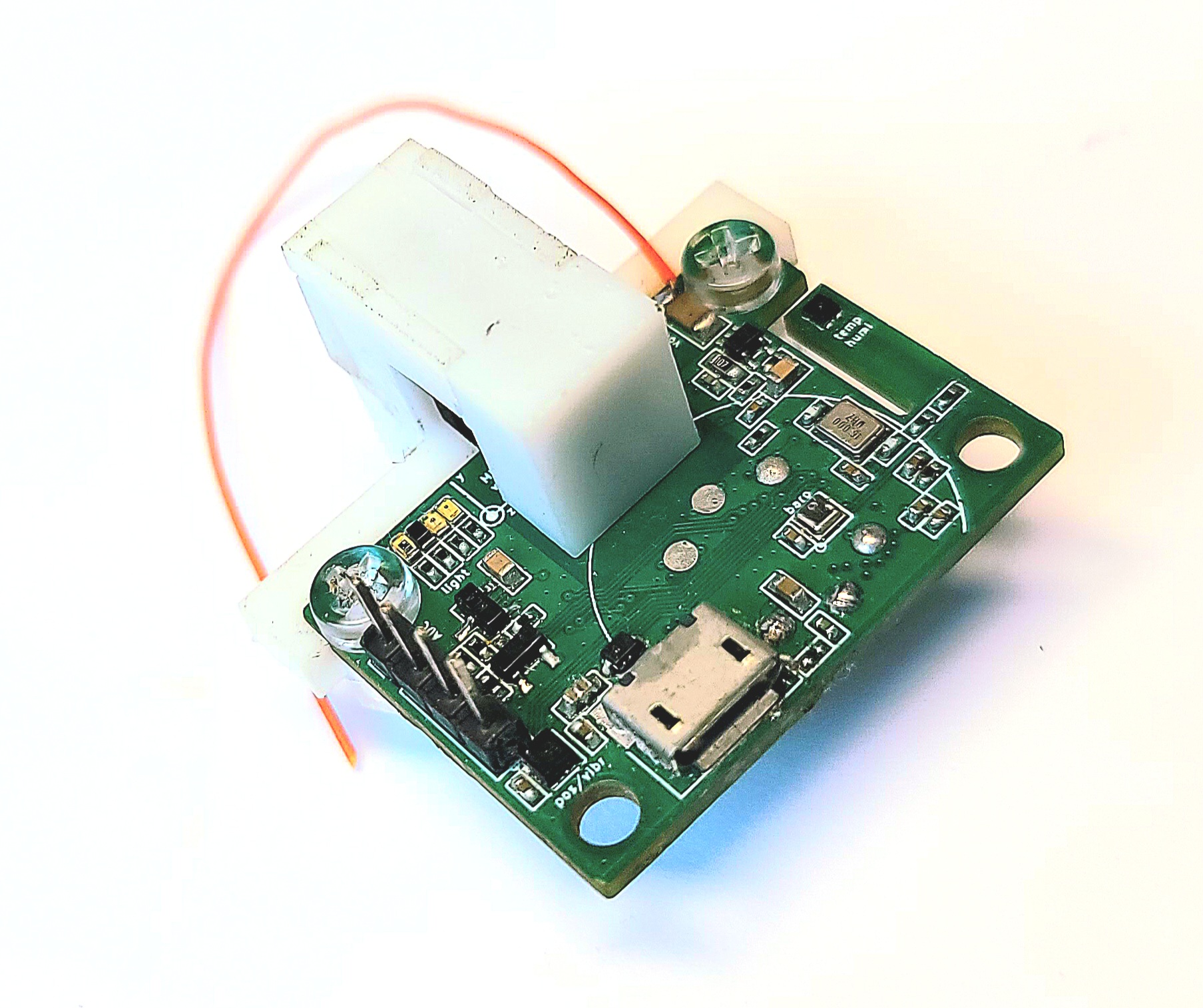

SM3324 · MULTI-SENSOR TOOLKIT

Modular Multi-Sensor Toolkit

Modular multi-sensor platform (33 × 24 mm PCB) — options c / v / i / p / a / t combinable freely; ADC streaming up to 300 kSPS single-ch, 150 kSPS dual-ch, 37.5 kSPS 7-ch simultaneous; 2 Mbaud USB CDC, driver-free on Linux / Windows / macOS
Option v — Non-contact AC voltage: capacitive coupling probe, ±1000 V range
Option c — Clamp-type AC/DC current: ±50 A range with shielded transducer

MCU

STM32F446RE · Cortex-M4 · 168 MHz

USB

Full-Speed 12 Mbps · CDC ACM · 2 Mbaud · driver-free

ADC (onboard)

12-bit · 300 kSPS single / 150 kSPS dual / 37.5 kSPS ×7 ch

Supply

4.75 – 5.25 V (USB bus) · 60 mA (typ) / 80 mA (max) all options active

View Datasheet

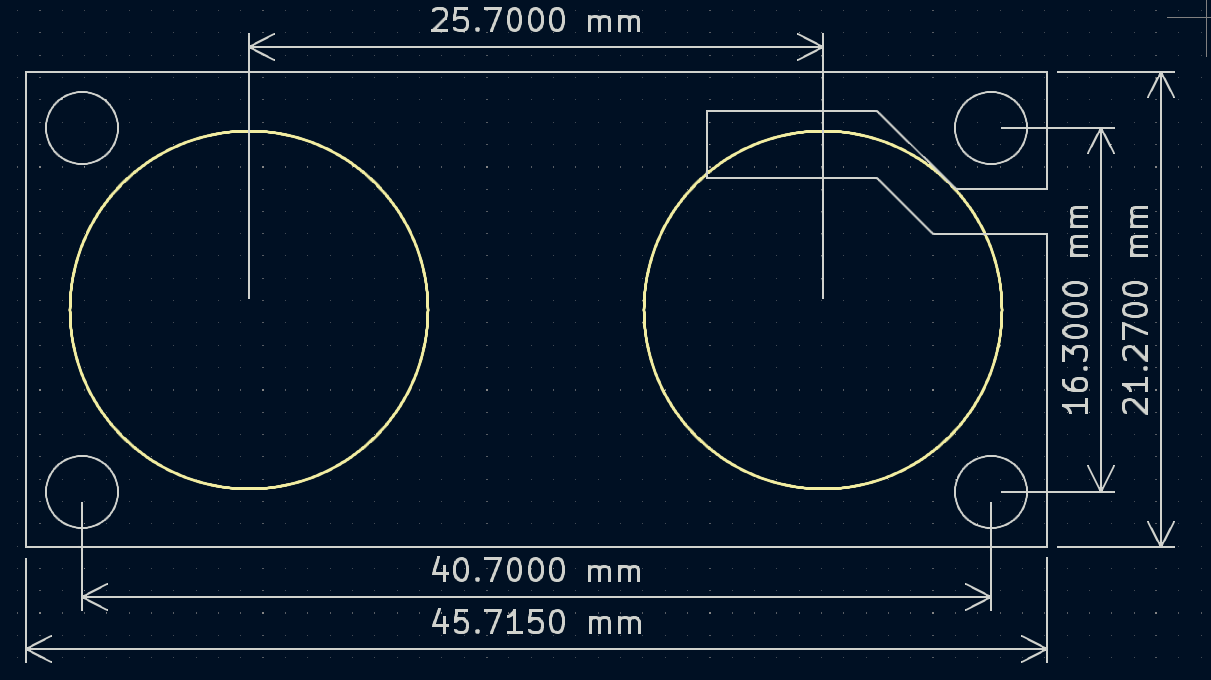

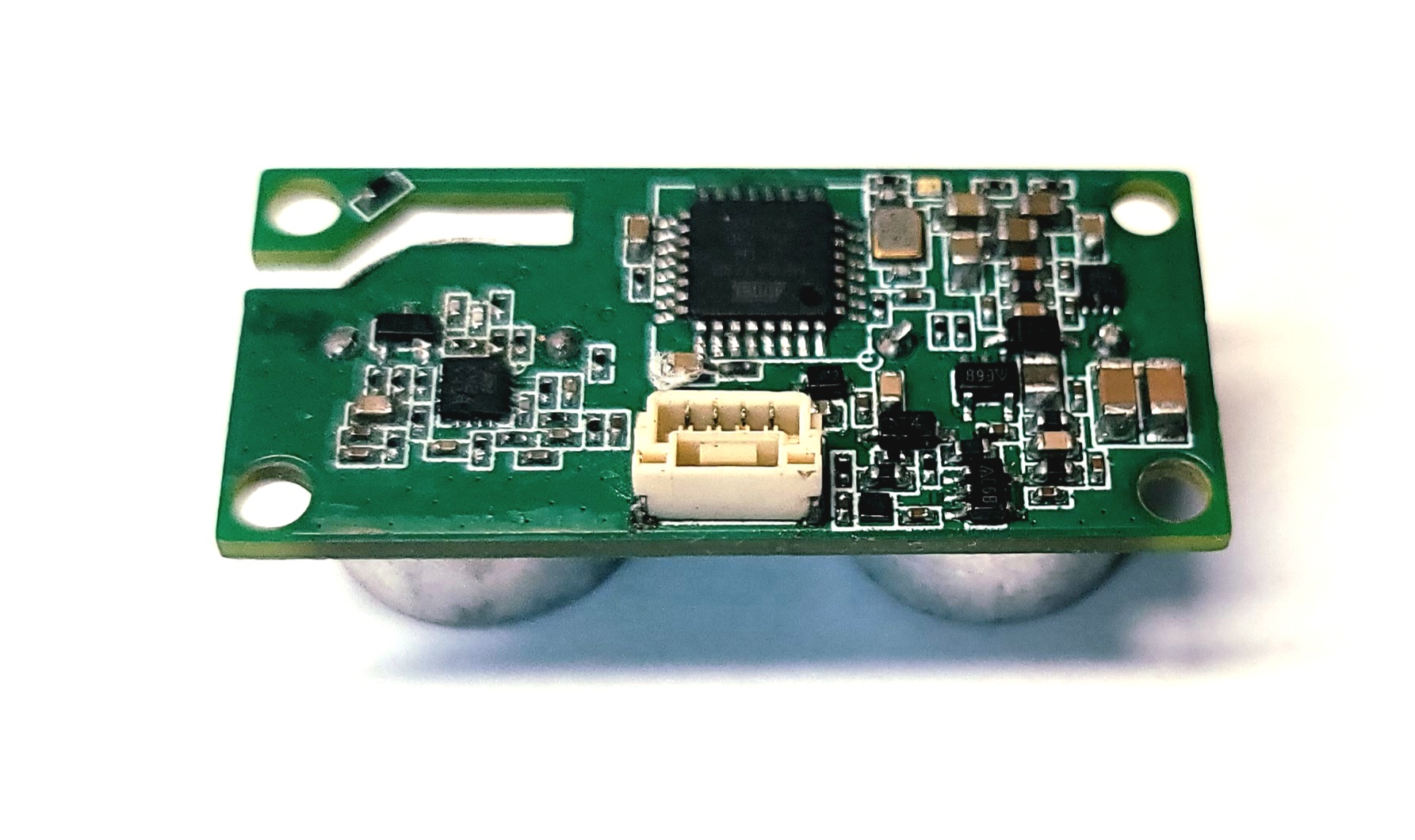

US0210 · ULTRASONIC DIST SENSOR

Ultrasonic Distance Sensor

Ultrasonic distance measurement: 15 mm ~ 10 m, 1 mm resolution
Temperature-compensated speed-of-sound — built-in NTC temperature sensor
Multiple beam frequency: 25 kHz wide beam (broad coverage) to 60 kHz narrow beam (tight, directional) — software selectable

Input Power

5 V / 300 mA

Measurement

Distance + Temperature

Measuring Range

15 mm ~ 10,000 mm

Guaranteed Accuracy

Up to 5,000 mm

View Datasheet
